Renegade Diablo

£2,249.00£2,399.00

The Ultimate Off-Road Board
New e-FOC Motor: Unbeatable Power
Binding Ready Carbon Deck

Bindings

Shipping in December

DIABLO RENEGADE SHIPPING SCHEDULE:

BATCH	DELIVERY	UNITS LEFT
BATCH #1	SHIPPING NOW!	SOLD OUT
BATCH #2	SHIPPING MID NOV	SOLD OUT
BATCH #3	SHIPPING MID DEC	AVAILABLE

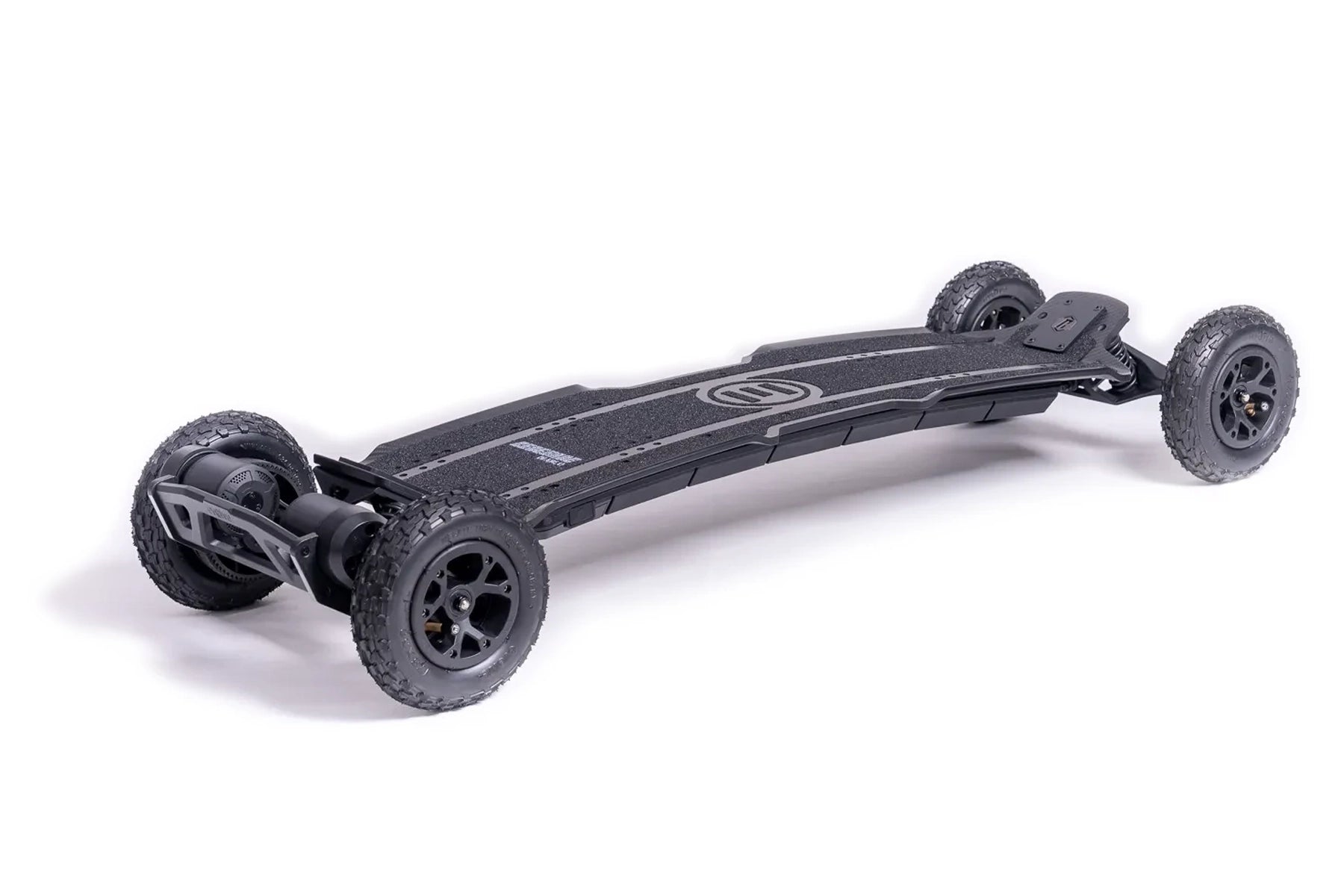

ABOUT THE BOARD

Meet the new Renegade Diablo, crafted for the true off-road adventurer. This board offers more speed with a max of 50 km/h and dual 6374 3500W (7000W) brushless motors, providing unparalleled power. With a range of up to 50 km on pneumatic tyres, you'll never have to worry about range anxiety. The new eFOC 2.0 Motor Controller increases current draw by 20%, delivering more torque at speed and ensuring the ultimate ride.

The Renegade Diablo's deck, made from solid carbon fibre, showcases Evolve's innovative design, combining robust strength with perfect flexibility for extreme riders. Equipped with new suspension trucks called “Renegade Forged,” these trucks are designed and built for maximum strength. Built-in binding hole inserts and Evolve Bindings (sold separately) transform this board into an off-road beast, ready to conquer new limits.

SPECS

DECK MATERIALS:	Carbon fibre
DECK LENGTH:	95cm (37.4 inches)
WHEEL BASE:	96.5 cm (38 inches)
TRUCKS:	Evolve Renegade trucks - Forged/CNC. 39cm (15.5 inch) width, 8mm axles
WHEELS:	Evolve 175mm (7 inch) pneumatic tyres - Evolve all-terrain hubs
MOTOR:	Dual 6374 3500w rated (7000w Total) custom brushless sensored motors
MOTOR CONTROLLER / ESC:	EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection.
BEARINGS:	Evolve Stainless Steel Ball Bearings
BATTERY:	43.2v - 864WH - 20AH - Samsung 50S
RECHARGE:	3.5 hrs - 4 hrs
REMOTE:	Evolve Phaze remote with CNC aluminium-reinforced body
WEIGHT:	16.4 kg (36lbs)
RANGE:	Up to 50km (31 miles)
TOP SPEED:	50km/h (31 mph)
MAX LOAD:	120kg / 265lb
SUITABLE TERRAIN:	Short grass, dirt, gravel, roads and footpaths
SLIDES:	Off road yes, not recommend on sealed surfaces
HILLS:	45% +
BRAKING:	FOC regenerative braking, adjustable brake and acceleration curves
AESTHETICS:	Tough mountain board look and feel with a medium flex Carbon fibre deck
LIGHTS:	Front and rear LED lights. User-customisable control via remote and Evolve app.
BINDINGS:	Optional fitment

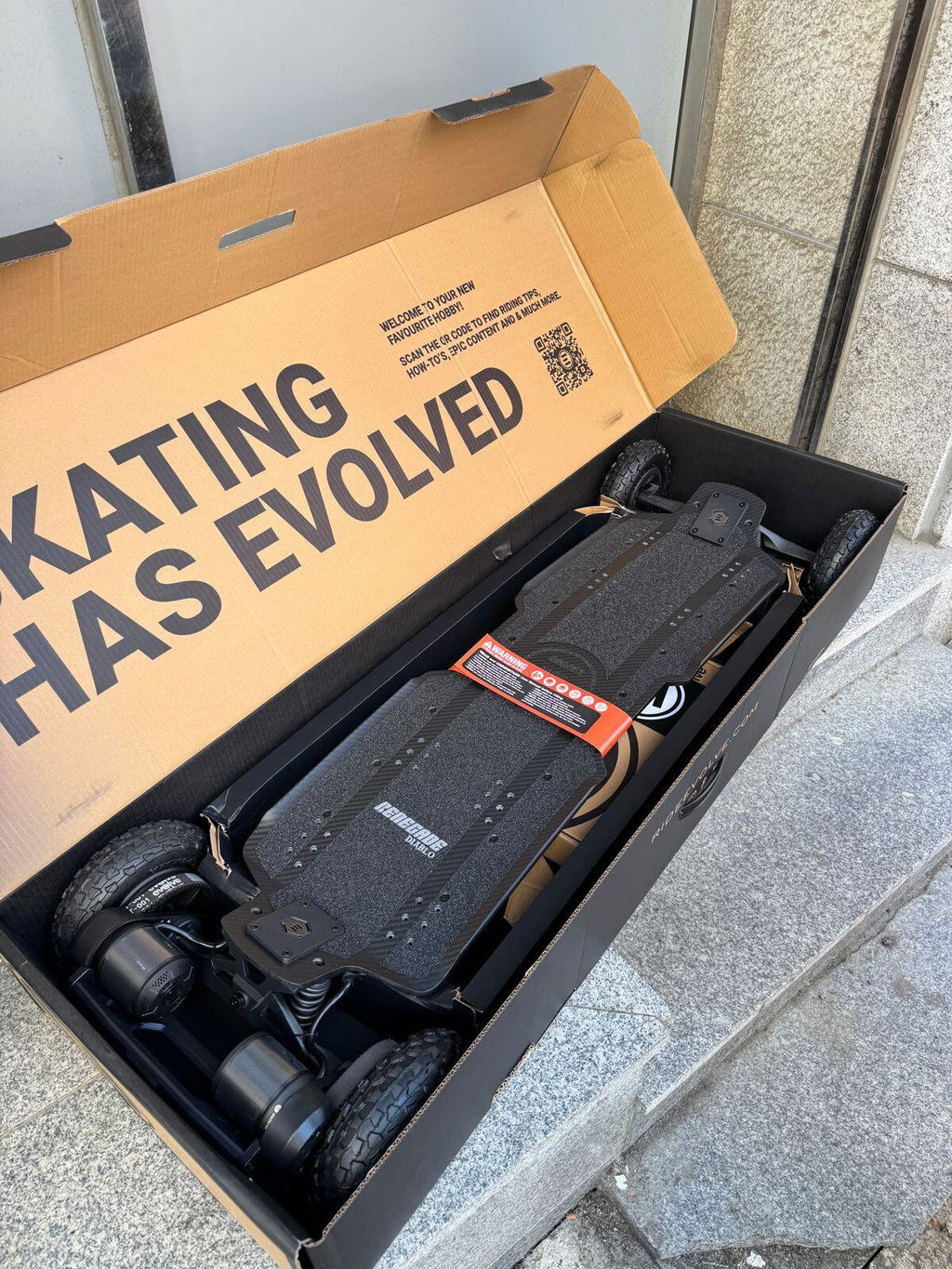

WHAT'S IN THE BOX

Your new Diablo Renegade
Fast charger (5A)
Phaze Remote, leash and USB-C charging cable
Y tool
Spare screws set

SHIPPING

SHIPPING WITHIN THE UK:

£14.95 for boards to mainland countries including England, Scotland and Wales.

SHIPPING TO IRELAND:

£38 PER BOARD

£11 LARGE/HEAVY ACCESSORIES IE KITS, WHEELS, HELMETS, BACKPACKS

£5 SMALL/LIGHT ACCESSORIES

We currently send all electric skateboards to UK customers via UPS courier due to restrictions on lithium batteries being sent via air freight and box size restrictions through regular mail. Boards take 1 to 3 days and accessories are usually delivered within 2 business days. Please note shipping for our accessories is calculated by weight and dimensions.

Please note that the times do not include processing and packing of your order. If you place an order on a Friday, Weekend or Public Holiday it will take longer to dispatch it to you.

Sorry, we cannot deliver to Post Office Boxes.

INTERNATIONAL SHIPPING:

Please check here to see if you have a local distributor in your country. If your country is not listed please email Evolve HQ for pricing.

FAQ

1. Whats the difference between the Hadean and Diablo series?

The Diablo Series is Evolves latest technology release and supersedes the Hadean series. Comparing to the Hadean boards, the diablo series uses larger more powerful motors, a new EFOC 2.0 ESC, it has a higher top speed rating, has 20% more ride times due to the larger capacity battery, stronger acceleration and braking performance and new Forged CNC SuperCarve 2 truck design. The Diablo also comes with an upgrade Software package.

2. Can I upgrade my Hadean board to perform like the Diablo?

It's possible to turn the Hadean into a Diablo, however to do this it will require a new Samsung 50S battery, 2 new 6374 motors and a new EFOC 2.0 ESC . Swapping these parts will be an expensive upgrade, its far better off purchasing the complete Diablo board which includes a new deck and the SuperCarve 2.0 trucks.

3. Can the Renegade be upgraded to the Renegade Diablo?

Yes this is possible. To do this you will need 2 new 6374 motors, a new EFOC 2.0 ESC, new remote firmware and new BMS firmware. Please contact Evolve customer service for enquiries.

4. Can I install the new SuperCarve 2 trucks on my Evolve board?

Yes you can. However you will also need the new AT or Street drive gears that fit the new truck axle. To purchase the new SuperCarve 2 trucks please see the link or contact Evolve customer service for enquiries.

5. Why does my remote vibrate when accelerating hard or riding up a hill?

If your remote vibrates under these riding conditions its possible you have activated ‘Over Current mode’. The Diablo board allows for a large amount of current to be used for a period of 7-8 seconds only. After 7-8 seconds the remote will drop to Sport mode until you release the acceleration trigger in which the remote automatically returns to Corsa mode.

6. Can I install the Diablo 6374 motors on my Hadean?

The motors can fit the Hadean motor plates, however they will not work properly with the Hadean motor controller, BMS and remote due to firmware incompatibility.

7. Why is my remote displaying ‘Heat’ and vibrating?

If your remote displays Heat this means you have activated heat protection on your skateboard and the remote is telling you this. If the motor controller gets over 85 degrees or the battery gets above 70 degrees the motor controller will reduce power until the system recovers and cools down.
